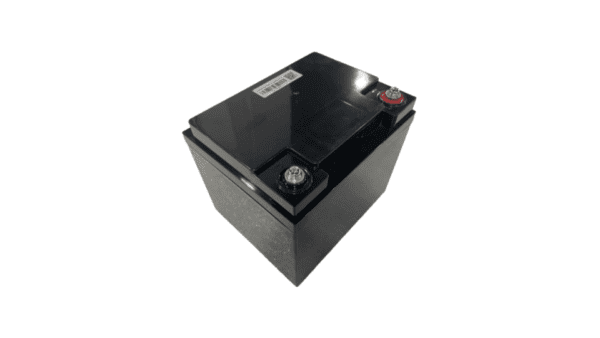

BATTERY-12.8/40AH-LP:
– White/Black ABS Box
– Voltage of single battery cell: 3.2V
– Case dimension: 325*162*81mm (L*W*H)
– Case dimension: 192*167*168mm (L*W*H) FOR BLACK CASING
– Nominal voltage:12.8V
– Nominal capacity:40Ah
– Internal resistance:≤60mΩ
– End of charge voltage: 14.6V
– End of charge current: 800mA
– End of discharge voltage:9.2V
– Charge method: CC/CV
– Max continuous charge current:20A
– Max continuous discharge current: 20A
– Max pulse discharge current: 30A/10S
– Capacity@1C rate 0.2 C: ≥40Ah
– Cycle Life: 6000 times
