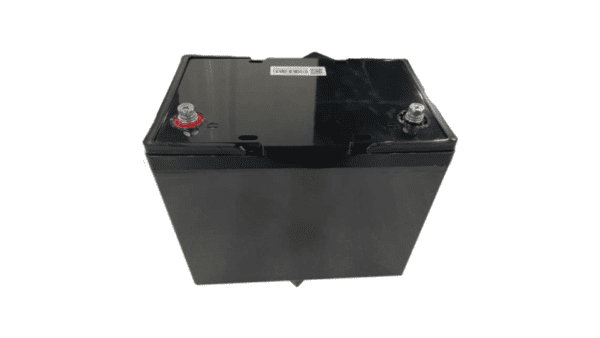

BATTERY-12.8/60AH-LP:
– Voltage of single battery cell: 3.2V
– Case dimension: 275*162*109mm (L*W*H)
– Nominal voltage: 12.8V
– Nominal capacity: 60Ah
– Internal resistance: ≤56mΩ
– End of charge voltage: 14.6V
– End of charge current:1200mA
– End of discharge voltage: 9.2V
– Charge method: CC/CV
– Max continuous charge current: 20A
– Max continuous discharge current: 20A
– Max pulse discharge current:30A/10S
– Capacity@1C rate 0.2C:≥60Ah
– Cycle Life:6000 times
