Description
Download:
Specification
Brochure

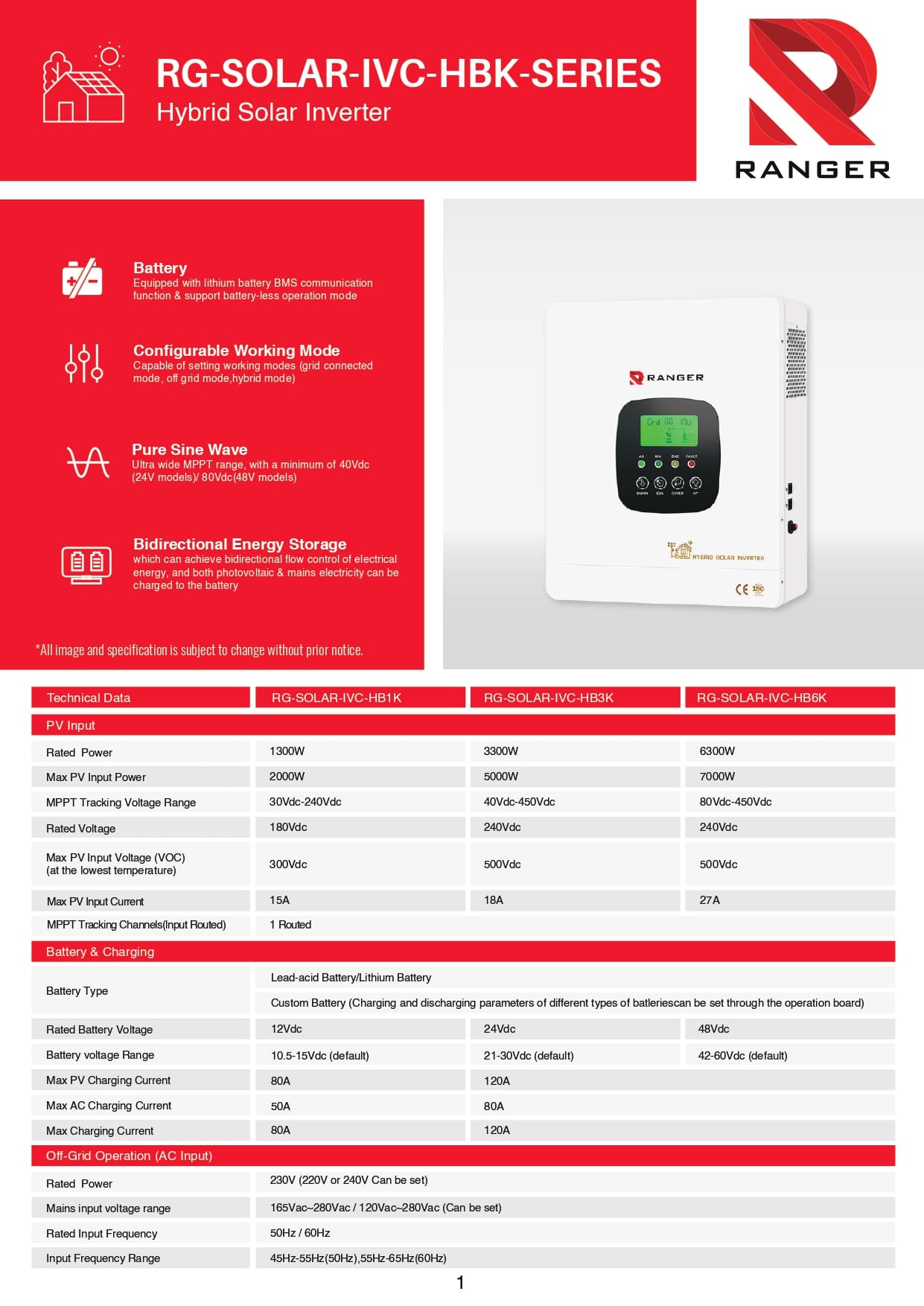

RG-SOLAR-IVC-HB3K-SERIES:

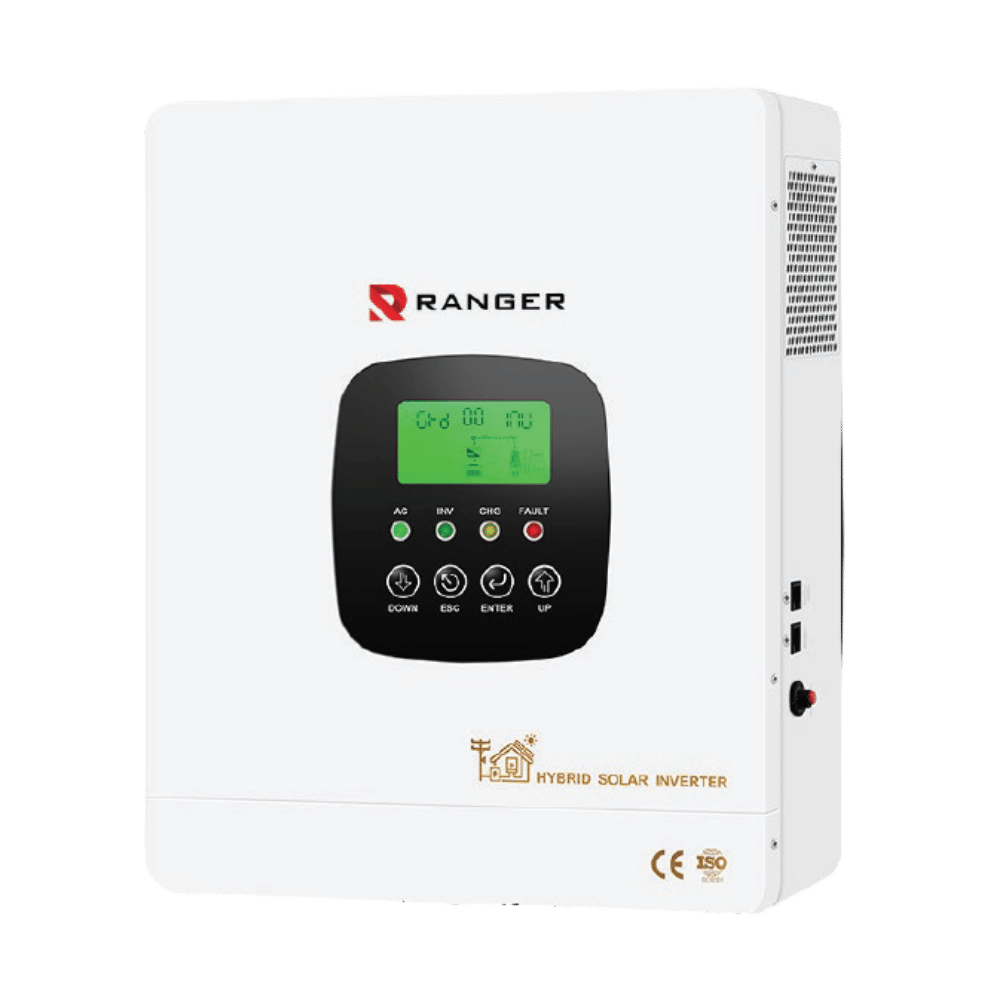

– Hybrid Solar Inverter
– Rated Power: 1300/3300/6300W
– Max PV Input Power: 2000/5000/7000W
– MPPT Tracking Voltage Range: 30Vdc-240Vdc/40Vdc-450Vdc/80Vdc-450Vdc
– Rated Voltage: 180/240/240VDC
– Max PV Input Voltage (VOC) (at the lowest temperature): 300/500/500Vdc
– Max PV Input Current: 15/18/27A
– MPPT Tracking Channels(lnput Routed): 1 Routed
– Battery Type: Lead-acid Battery/Lithium Battery OR Custom Battery (Charging and discharging parameters of different types of batteries can be set through the operation board)
– Rated Battery Voltage: 12/24/48Vdc
– Battery Voltage Range: 10.5-15/21-30/ 42-60Vdc (default)
