SOLAR-MPPT-2420-20A:

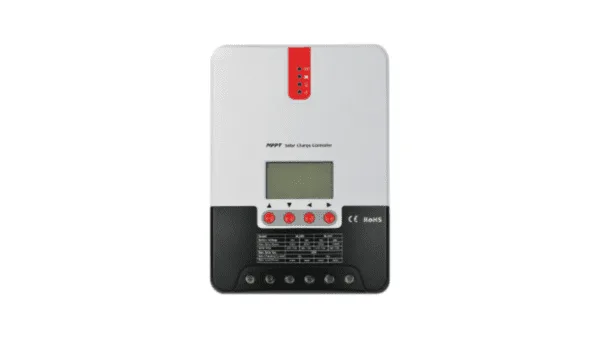

– MPPT Charge Solar Controller with LCD display 20A (12V/24V)
– System voltage:12V/24VAuto
– No- load loss:0.7W to 1.2W
– Battery voltage:9V to 35V
– Max. solar input voltage:100V(25°C) 90V(-25°C)
– Max. power point voltage range: Battery Voltage+2V to 75V
– Rated charging current:20A
– Rated load current:20A
– Max. capacitive load capacity: 10000uF
– Max. photovoltaic system input power: 260W/12V 520W/24V
– Conversion efficiency:≤98%
– MPPT tracking efficiency:>99%
– Temperature compensation factor:-3mv/°C/2V (default)
