Description
Download:
Specification
Brochure

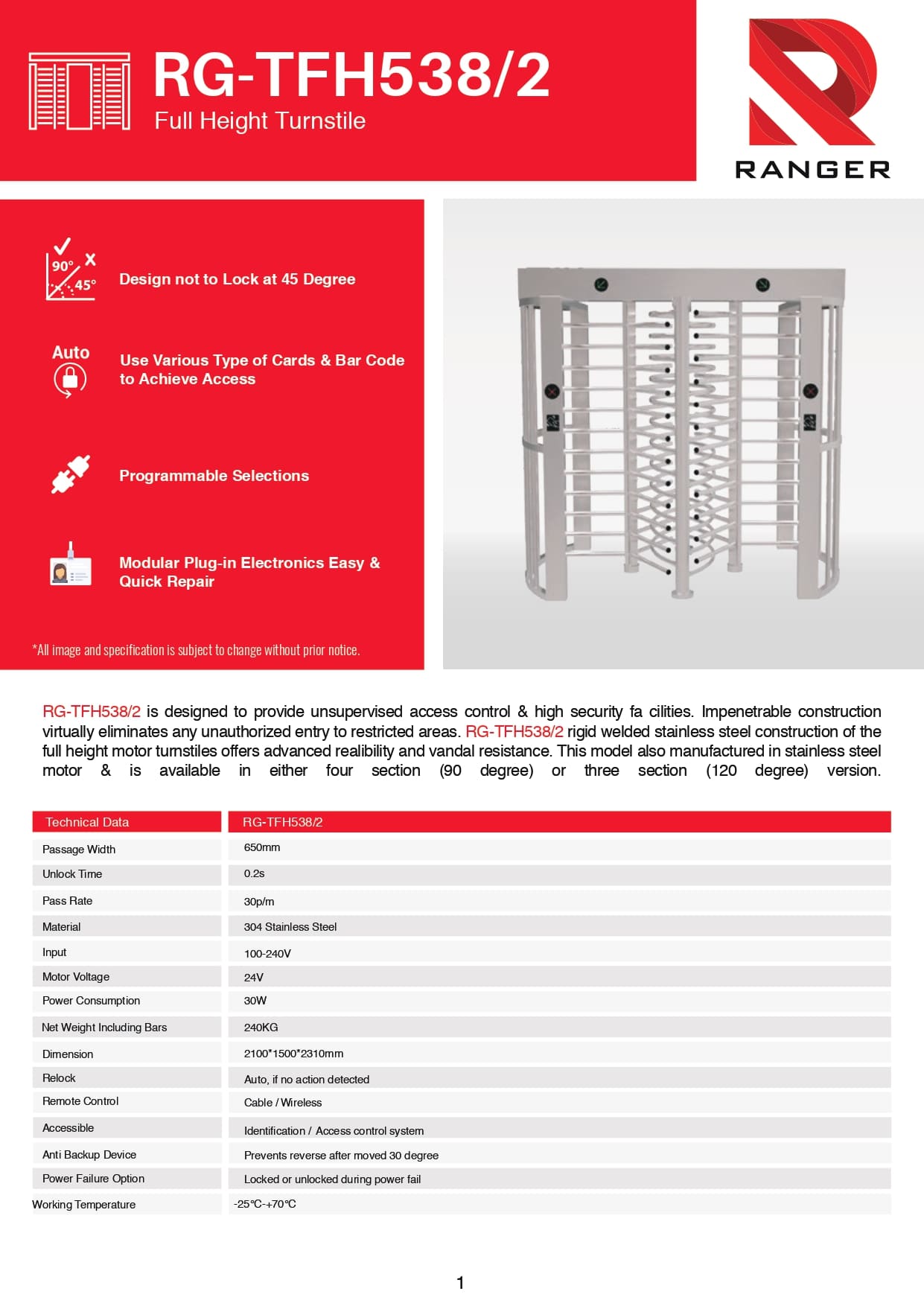

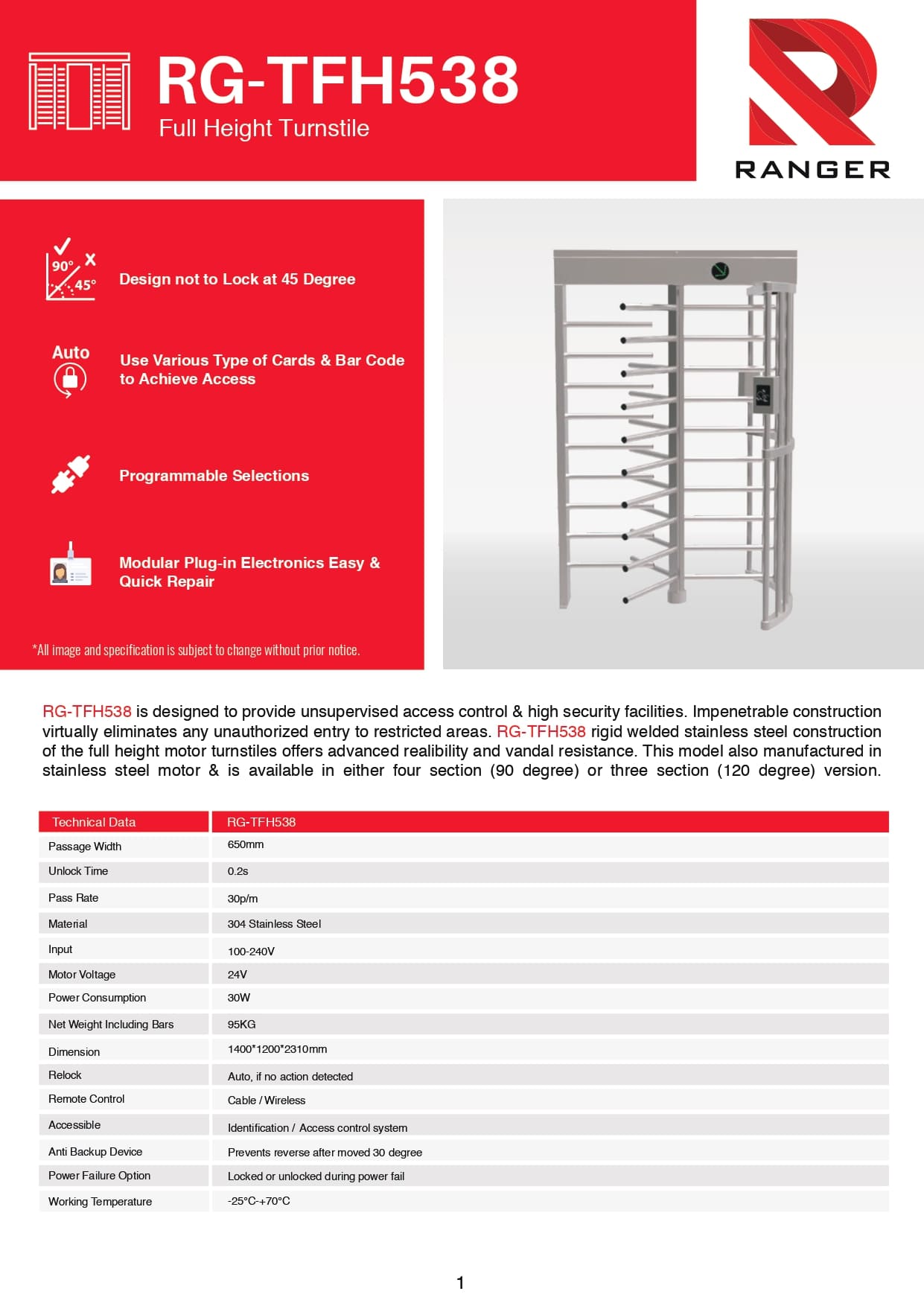

RG-TFH538 // RG-TFH538-2:

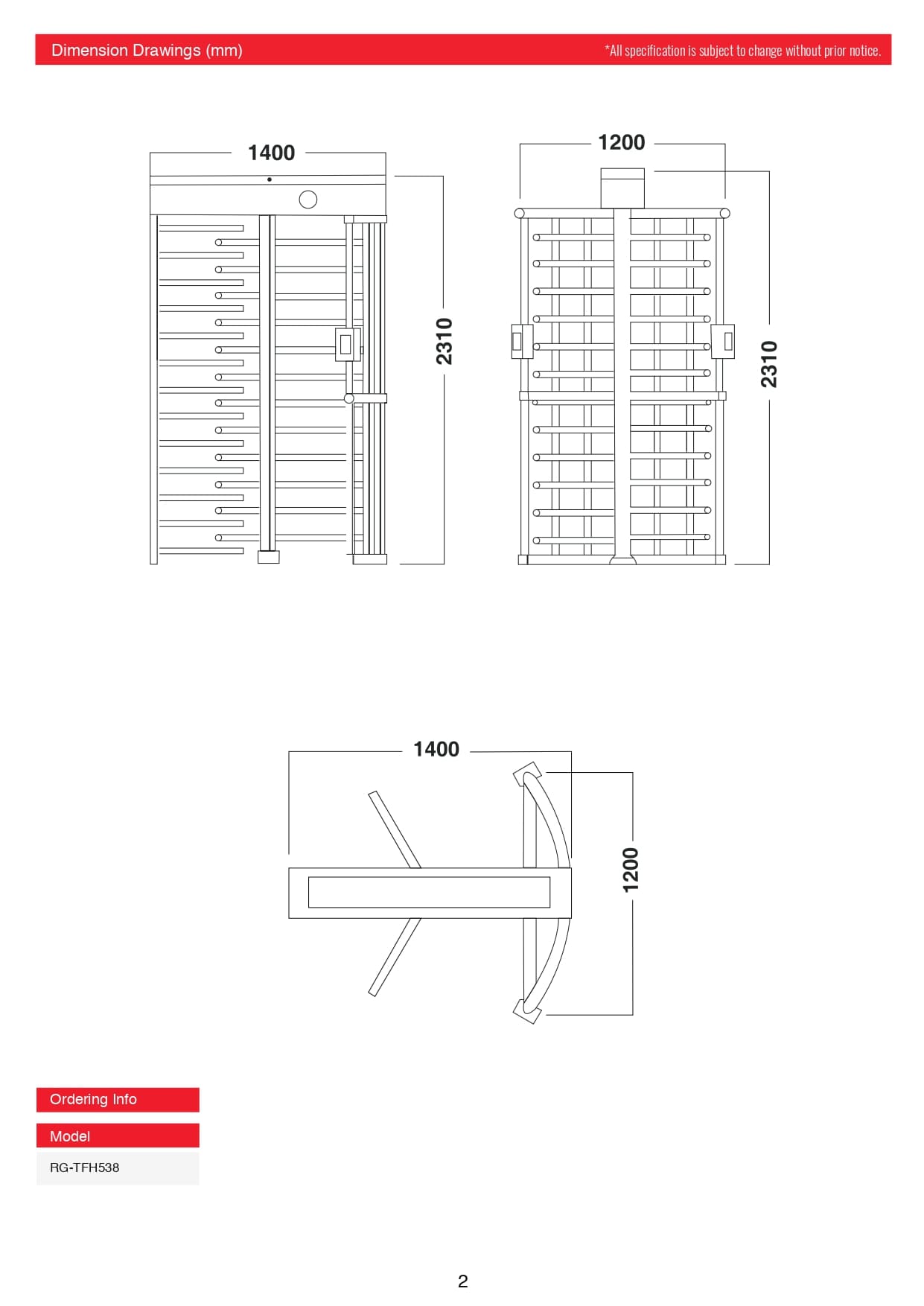

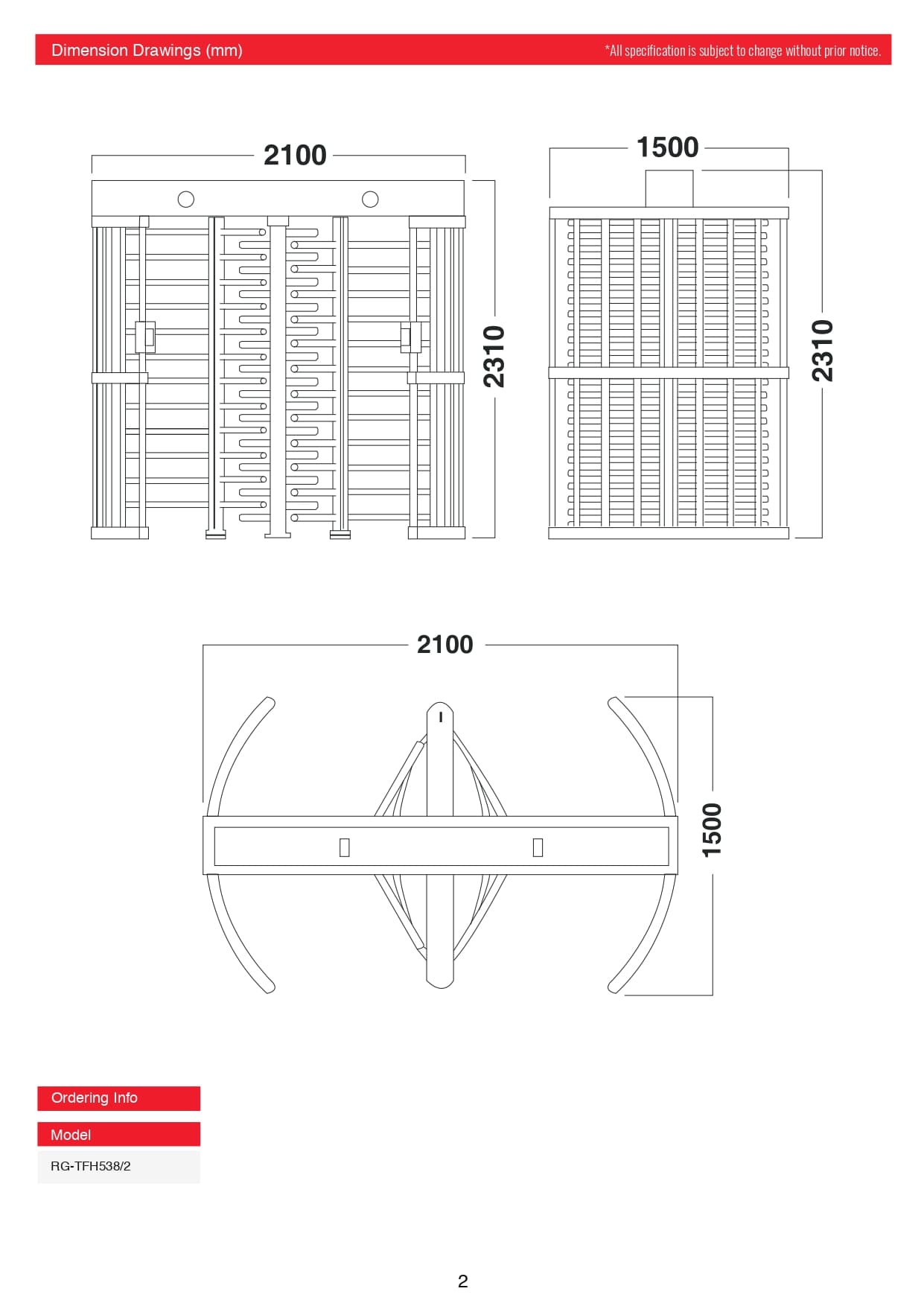

– 1400*1200*2310mm Dimension // 2100*1500*2310mm Dimension
– 35 Person/Minute Throughput Rate // 30 Person/Minute Throughput Rate
– 110KG Net Weight Excluding Bars // 240KG Net Weight Including Bars
– AC100~240V Power Supply
– DC24V Max Power Circuit
– 30W Max Power Consumption
– 12V Pulse Signal Output
– 50~60Hz Frequency
– -25~70 Degree Working Environment Temperature // -20~70 Degree Working Environment Temperature
– 12V Pulse Signal Output
– IP44
– 95% Humidity
– RS485 TCP IP Communication Interface
