Description

Download:
Specification
Brochure

RG-SOLAR-GR-SERIES:

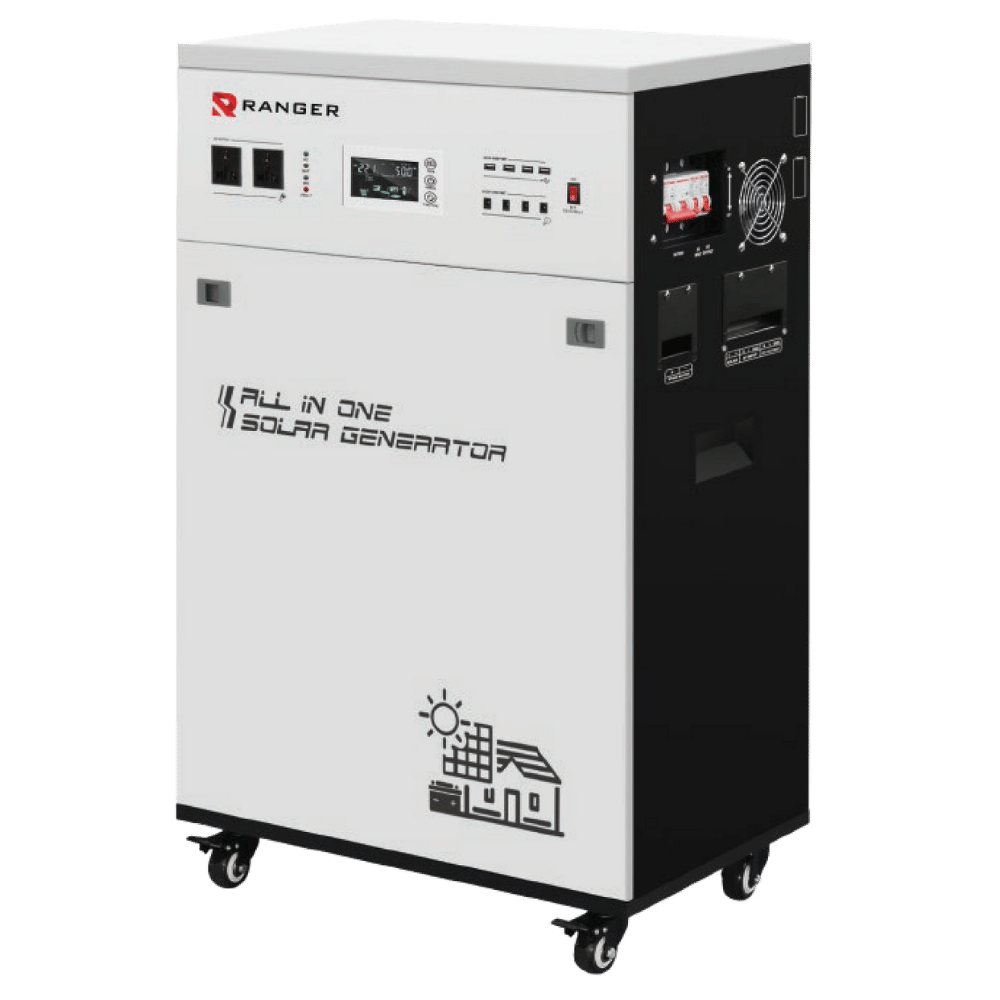

– Solar Generator 1500W/2000W
– Rated Power: 1500/2000W
– Peak Power (20ms): 4500/600VA
– Stardard battery voltage: 24vVDC
– AC input voltage range: 85VAC~138VAC (110VAC) / 95VAC~148VAC (120VAC) / 170VAC~275VAC(220VAC)/ 180VAC~285VAC (230VAC)/ 190VAC~295VAC (240VAC)
– AC input frequency range: 45Hz~55Hz（50Hz);55Hz~65Hz（60Hz)
– Conversion efficiency: ≥85%(Battery mode); >99%(AC mode)
– AC charging current: 0~30A(Depends on model)
– AC charging method: Three-stage(constant current, constant voltage, floating charge)

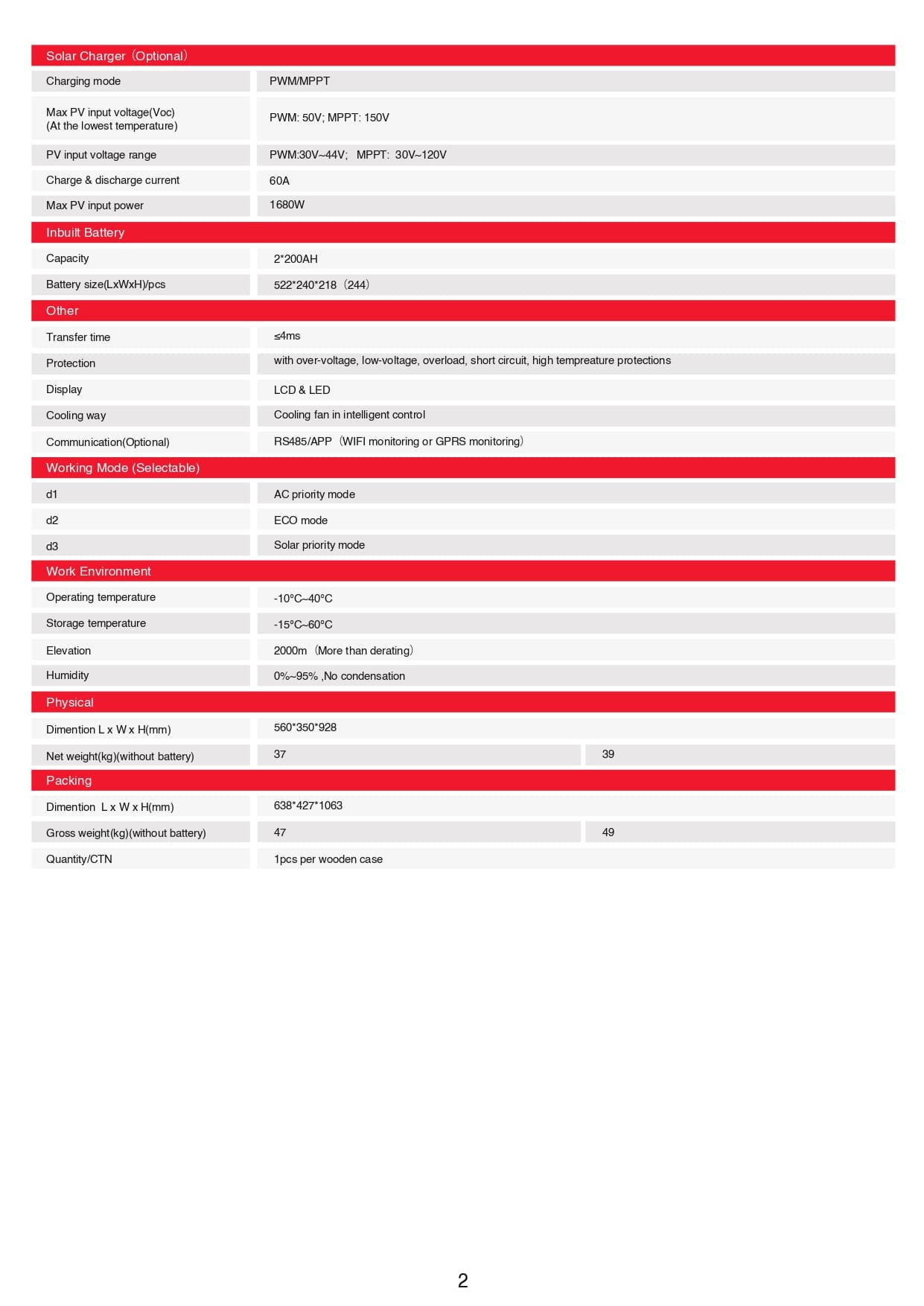

Solar Charger (optional)
– Charging mode: PWM/MPPT
– Max PV input voltage(Voc) (At the lowest temperature): PWM: 50V; MPPT: 150V

Inbuilt Battery
– Capacity: 2*200AH
– Battery Size (LxWxH)/pcs: 522*240*218 (244)
