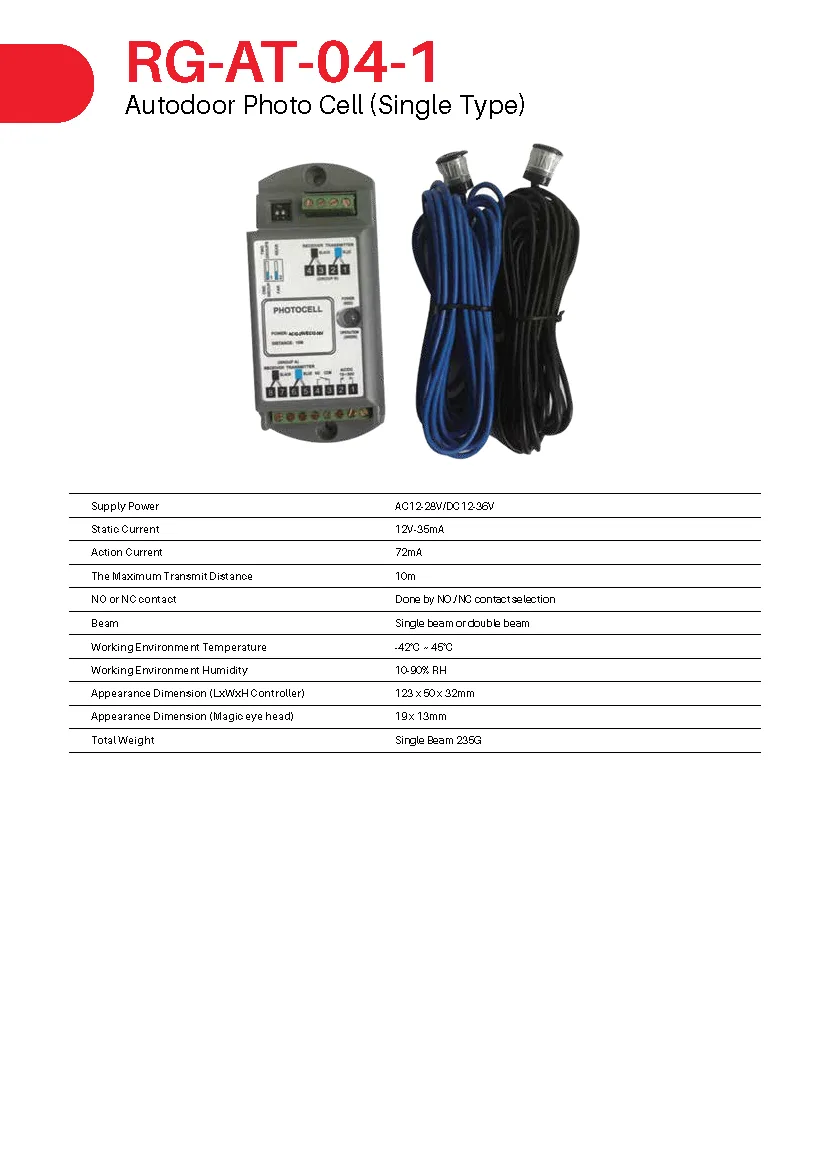

RG-AT-04-1 / RG-AT-04-1 :

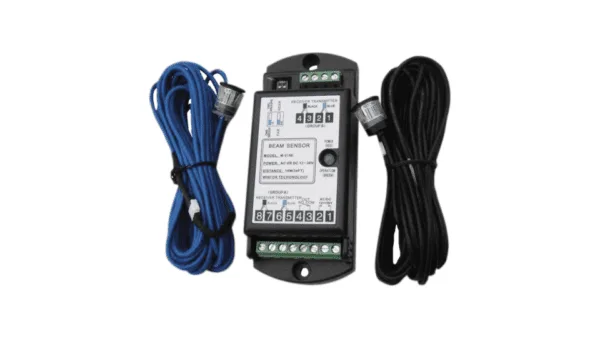

– Auto Door Photo Cell For Safety ( Single & Double Type )
– Supply Power : AC12-28V/DC12-36V
– Total Weight (Single Beam) : 235g
– Static Current : 12V-35mA
– Action Current : 72mA
– Maximum Transmit Distance : 10m
– Beam : Single beam or double beam
– Working Environment Temperature : -42°C ~ 45°C
– Working Environment Humidity : 10~90% RH
– No or NC Contact : Done by NO./NC contact selection
– Appearance Dimension (LxWxH Controller) : 123 x 50 x 32mm
– Appearance Dimension (LxWxH Magic Eye Head) : 19 x 13mm
