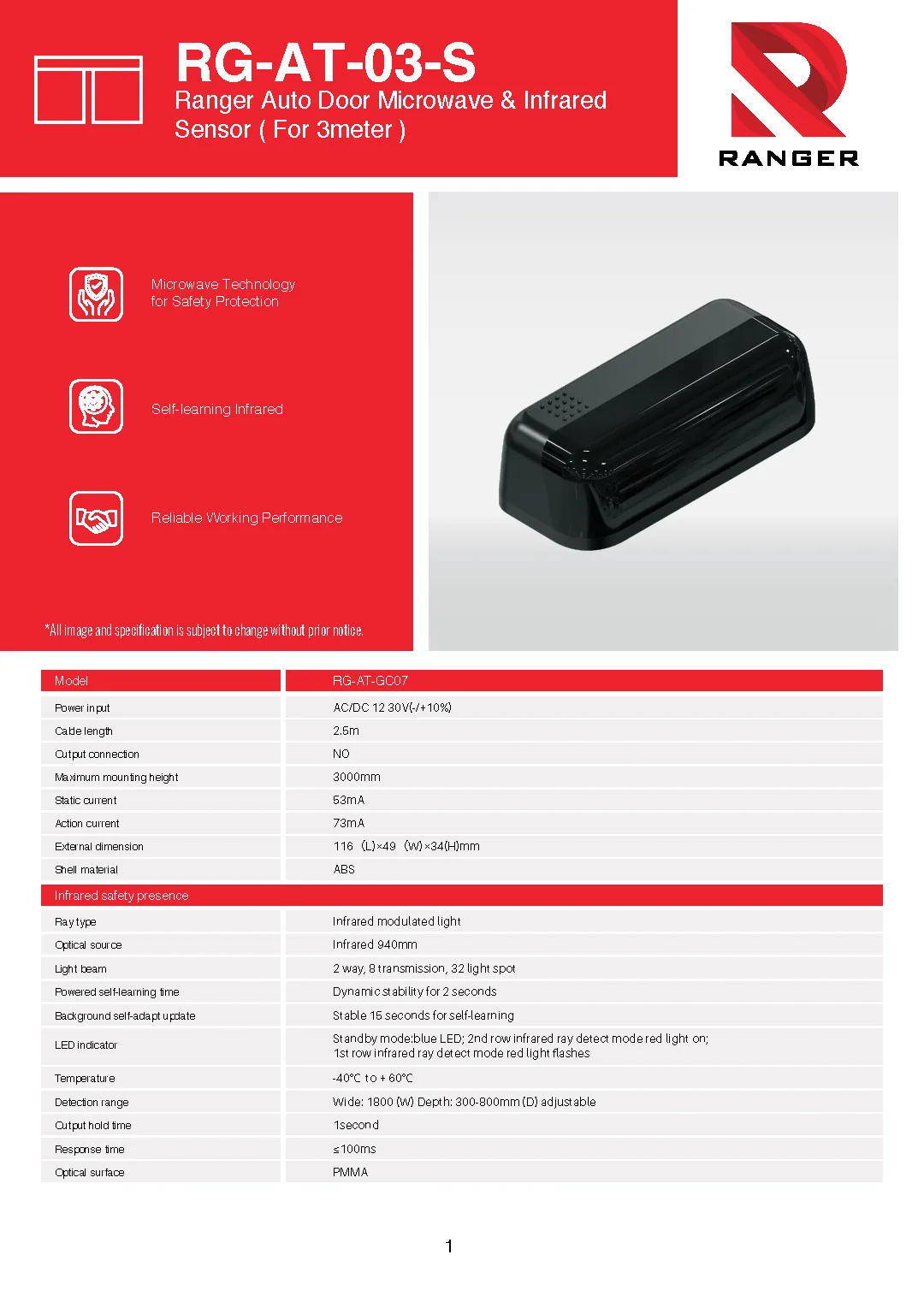

RG-AT-03-S:

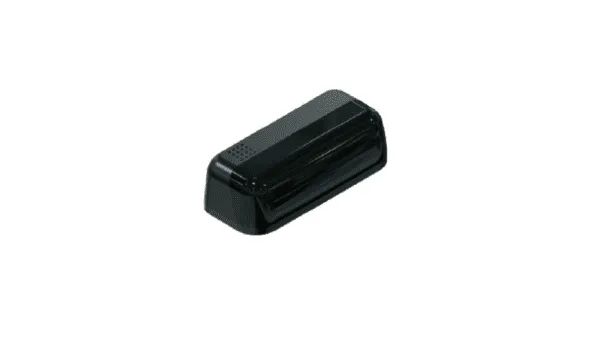

– Auto Door Microwave & Infrared Sensor (For 3meter)
– AC/DC 12 30V(-/+10%) Power Input
– 2.5m Cable Length
– NO Output Connection
– 3000mm Maximum Mounting Height
– 53mA Static Current
– 73mA Action Current
– ABS Shell
Infrared safety presence:
– Infrared 940mm
– 2 way, 8 transmission, 32 light spot Light Beam
– Wide: 1800 (W), Depth: 300-800mm (D) adjustable detection
– 1 second Output Hold Time
– ≤100ms Response Type

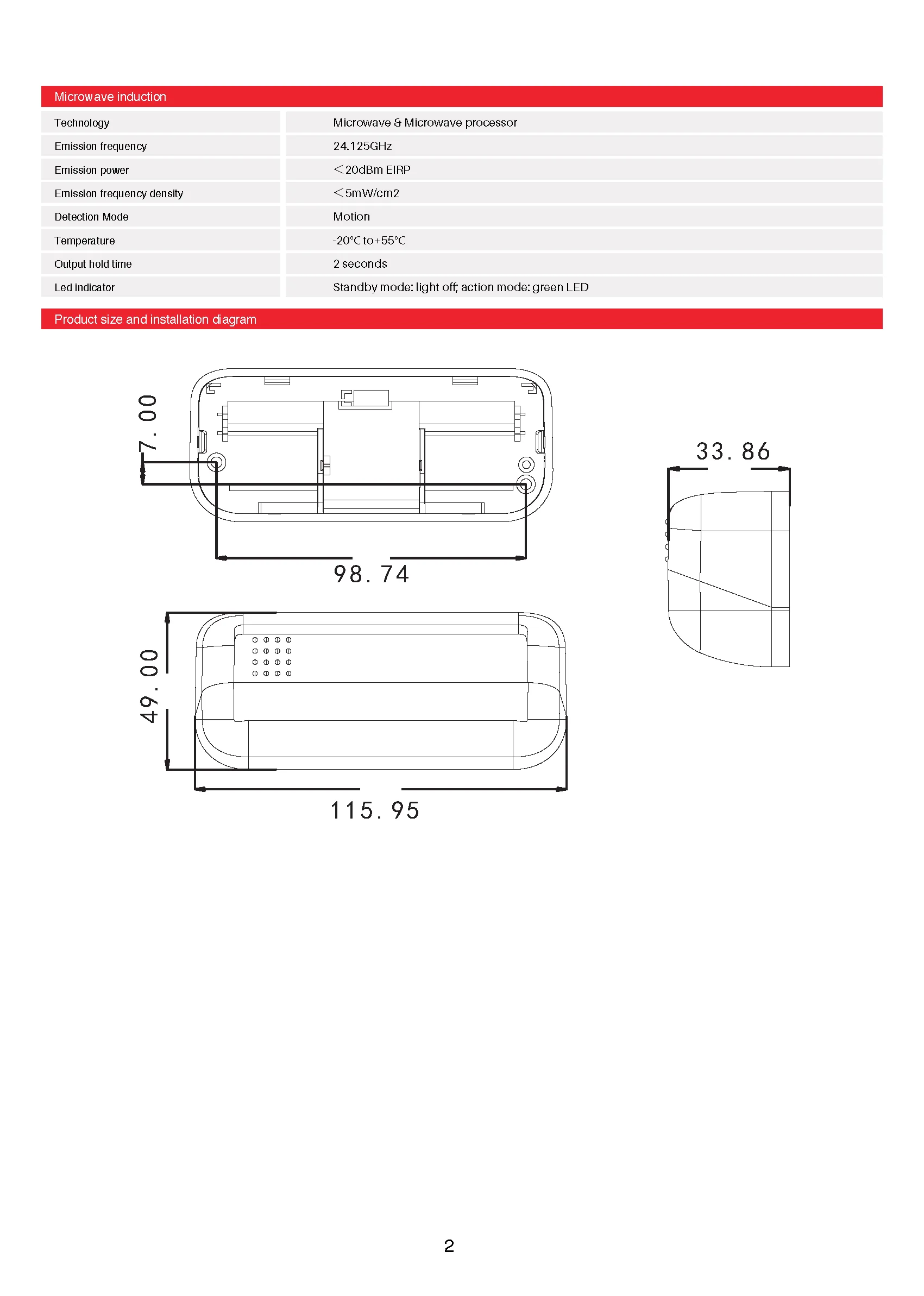

Microwave Induction:
– 24.125GHz Emission frequency
– <20dBm EIRP Emission power
– <5mW/cm2 Emission frequency density
– Motion Detection
– 2 seconds Output Hold Time
